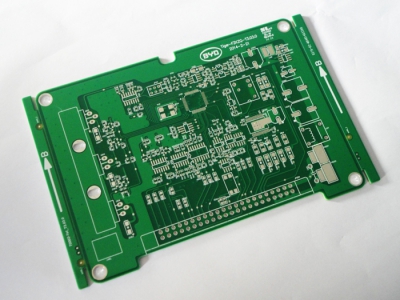

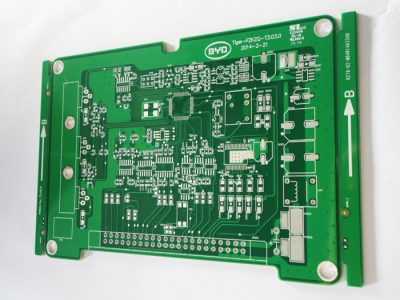

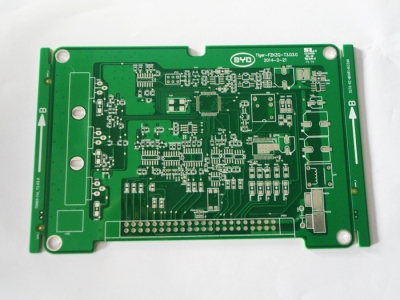

Product classification: automotive signal acquisition control PCB
Model: m04r14633
Number of layers: 4
Plate thickness: 2 + / - 0.12mm
Size: 169.24mm * 108.99mm
Plate used: Shengyi (s1000h)
Minimum aperture: 0.4mm
Surface treatment: tin spraying
Minimum pore copper: 25um
Copper thickness: 20Z
Minimum line width / distance: 0.228mm/0.203mm
