Power supply high Multilayer PCB /

Home > Power supply high Multilayer PCB

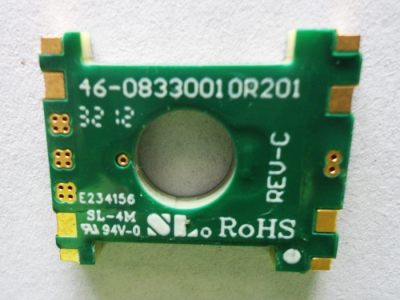

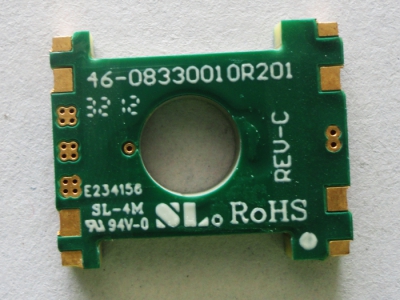

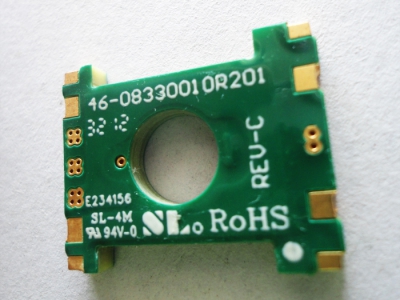

Power supply high Multilayer PCB

Detailed

Product classification: high power Multilayer PCB

Model: m10c02761

Number of layers: 10

Plate thickness: 3.3 + / - 0.3mm

Size: 20mm * 24.5mm

Plate used: Lianmao (it180a)

Minimum aperture: 0.4mm

Surface treatment: gold deposition

Minimum pore copper: 30um

Copper thickness: 50z

Minimum line width / distance: 0.47mm/0.209mm

Gold thickness: > = 2U“

Previous：Power supply high Multilayer PCB Next：Power supply high Multilayer PCB
