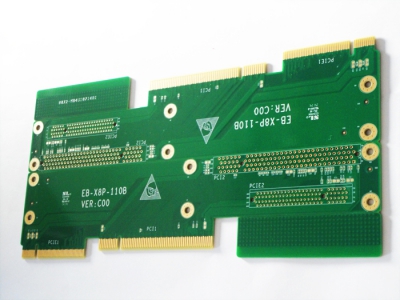

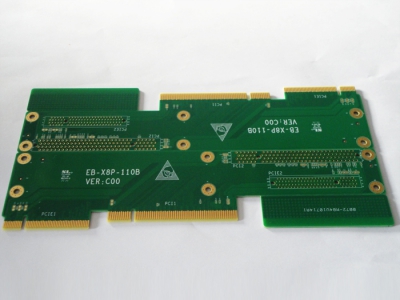

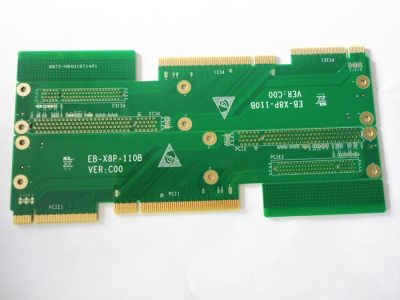

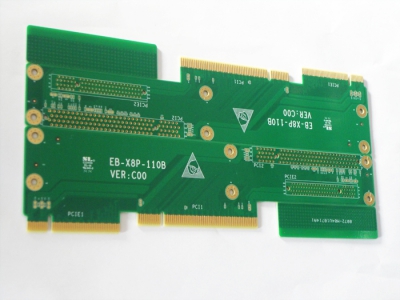

Product classification: Industrial PCB
Product model: m04u10714
Number of layers: 4
Plate thickness: 1.6 + / - 0.16mm
Size: 113.02mm * 235.9mm
Plate used: Shengyi (s1000-2)
Minimum aperture: 0.3mm
Minimum pore copper: 20um
Surface copper thickness: 1oz
Impedance tolerance: ± 8%
Surface treatment: sinking gold + gold finger
Heavy gold: 1 ~ 3U“
Gold finger gold thickness: min30u“
Minimum line width / distance: 0.112mm/0.142mm
