PCB of automobile tig-dcdc converter /

Home > PCB of automobile tig-dcdc converter

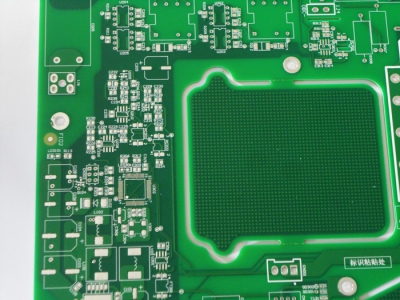

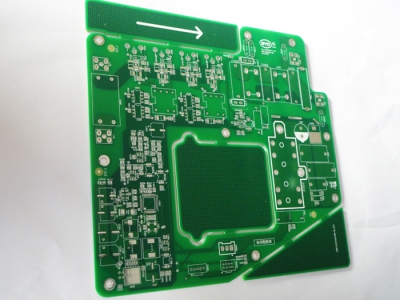

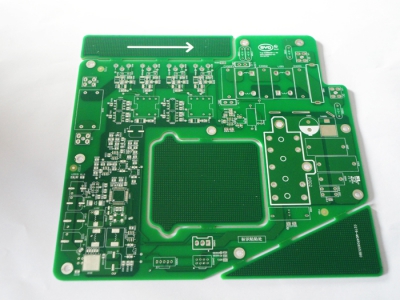

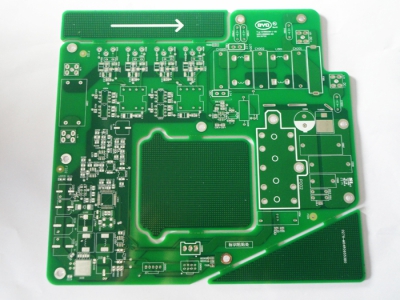

PCB of automobile tig-dcdc converter

Detailed

Product classification: Automotive tig-dcdc converter PCB

Model: m04r06553

Number of layers: 4

Plate thickness: 2 + / - 0.2mm

Size: 215.2mm * 230mm

Plate used: Lianmao (it158)

Minimum aperture: 0.3mm

Surface treatment: tin spraying

Minimum pore copper: 25um

Copper thickness: 20Z

Minimum line width / distance: 0.334mm/0.135mm

Previous：Car body sensor Next：Automotive TIG - on board PCB
