Automotive TIG - on board PCB /

Home > Automotive TIG - on board PCB

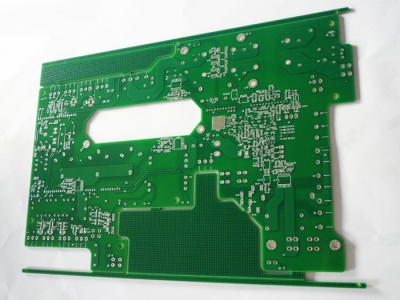

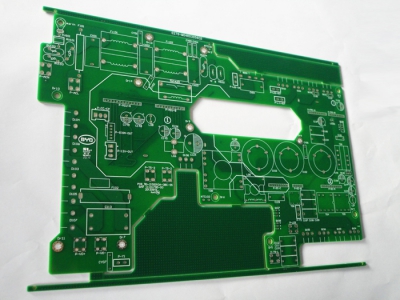

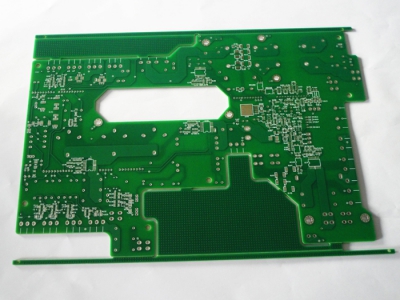

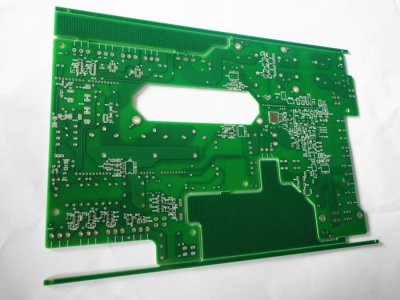

Automotive TIG - on board PCB

Detailed

Product classification: Automotive TIG - on board PCB

Model: m04r03056

Number of layers: 4

Plate thickness: 2 + / - 0.2mm

Size: 225.5mm * 320mm

Plate used: Lianmao (it158)

Minimum aperture: 0.4mm

Surface treatment: tin spraying

Minimum pore copper: 25um

Copper thickness: 20Z

Minimum line width / spacing: 0.58mm/0.25mm

Previous：PCB of automobile tig-dcdc converter Next：Automotive TIG - on board PCB
