Automotive TIG - on board PCB /

Home > Automotive TIG - on board PCB

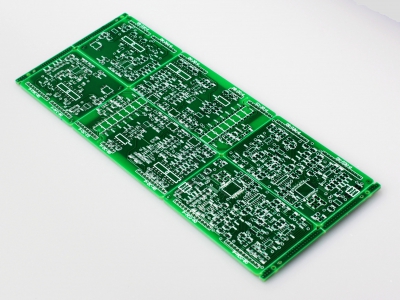

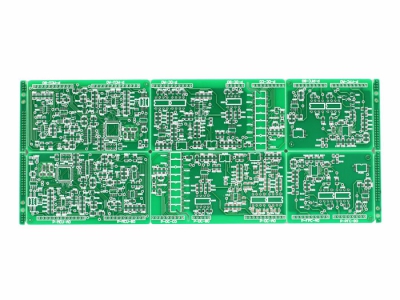

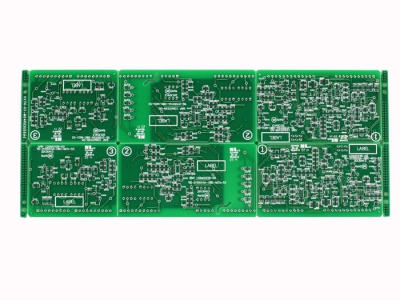

Automotive TIG - on board PCB

Detailed

Product classification: Automotive TIG - on board PCB

Model: m04r03055

Number of layers: 4

Plate thickness: 2 + / - 0.2mm

Size: 247mm * 99mm

Plate used: Lianmao (it158)

Surface treatment: tin spraying

Minimum aperture: 0.5mm

Minimum pore copper: 25um

Copper thickness: 20Z

Minimum line width / distance: 0.304mm/0.153mm

Previous：Automotive TIG - on board PCB Next：PCB of automobile engine
