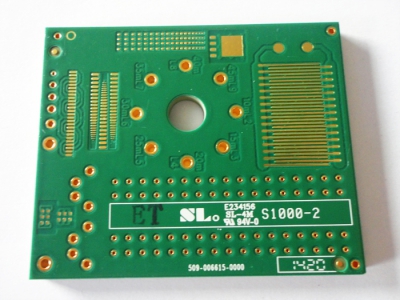

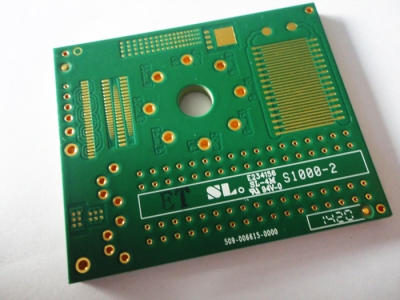

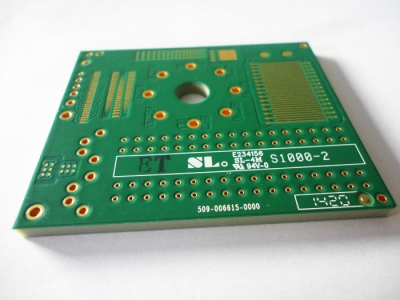

Power supply high Multilayer PCB

Detailed

Product classification: high power Multilayer PCB

Model: s12c13288

Number of layers: 12

Plate thickness: 3.05mm

Size: 58.4mm * 47.6mm

Plate used: Shengyi (s1000-2)

Minimum aperture: 0.6mm

Surface treatment: gold deposition

Minimum pore copper: 50-60um

Surface copper thickness: 108.6-149.5um

Minimum line width / spacing: 0.076 mm / 0.076 mm

Gold thickness: 3-6.9u“
