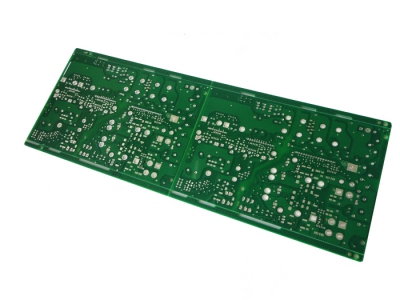

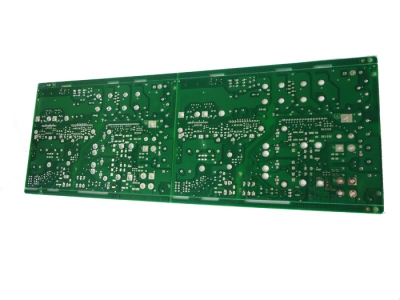

Product classification: high power Multilayer PCB
Model: m04r17814
Number of layers: 4
Plate thickness: 1.6 + / - 0.16mm
Size: 320mm * 117.4mm
Plate used: Lianmao (it158)
Minimum pore diameter: 0.55um
Surface treatment: Lead Free Tin spray
Minimum pore copper: 30um
Minimum surface copper: 108um
Minimum line width / distance: inner layer: 0.46mm/0.12mm
Tin thickness: > = 2.54um
